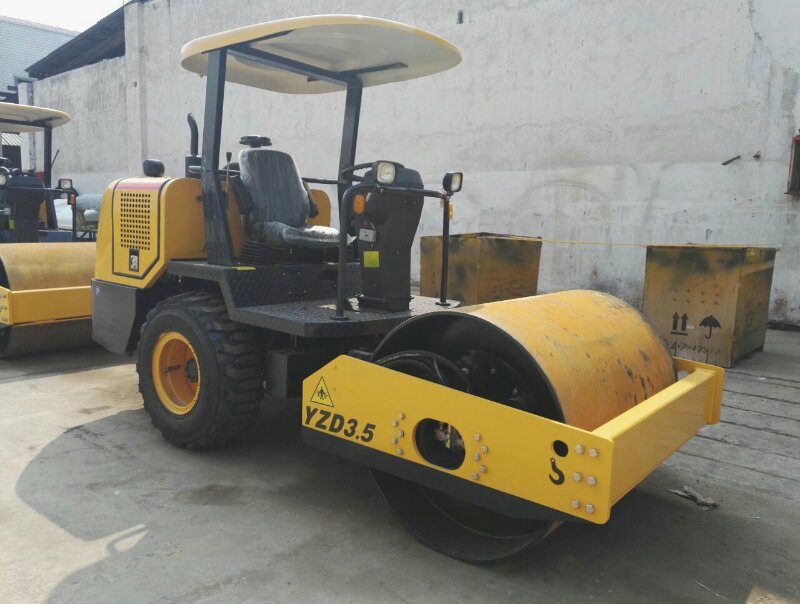

产品介绍
-
主要特点MAIN FEATURES
1.液压振动，液压转向，后轮机械驱动。
2.单钢轮更适用于土方活儿，后双轮胎驱动强劲，爬坡能力强。激振力5.3吨左右，压实效果远超同级别产品。
3.国内知名3缸水冷柴油机，动力强劲性能高效稳定。4.软轴可调高速度模式，转场方便。
1. Hydraulic vibrating and steering, Back wheel mechanical drive.
2.Single Drum roller suitable for earthwork compaction, back wheel is double antiskid tire, strong driving force and gradeability. Exciting force is about 5.3T. compacting force is larger than equal level.
3. Changchai 3 cylinder water-cooling diesel motor, strong power and fuel-efficient.Flexible shaft can adjusted to high speed mode. Convenient for transition on field.
主要技术参数：MAIN PERFORMANCE PARAMETRES
型号
MODEL
YZD3.5
工作质量
Operating Mass
kg
3500（带驾驶室）
激振力
Exciting Force
kn
53
振动频率
Vibration Frequency
Hz
45
振动轮宽度/直径
Drum Width/Diameter
mm
1200/950
静线载荷（前轮）
Static Linear Load(Front)
N/cm
118
行走速度
Travel Speed
km/h
2/4/8/14
爬坡能力
Gradeability
%
30
小转弯半径
Minimum turning radius
mm
4600
轴距
Wheelbase
mm
2300
小离地间隙
Min. ground clearance
mm
280
柴油箱/液压油箱容量
Diesel/ Hydraulic tank capacity
L
60/60
柴油机型号
Diesel Model
ZN385Q
柴油机功率
Diesel Power
kw
21
外形尺寸
Dimension(L×W×H)
mm
3500x1390x2200
